iOS - UIWebView & JSContext & WKWebView

Posted
By vinoqiu
12 min read
iOS - UIWebView & JSContext & WKWebView

UIWebView

A view that embeds web content in your app.

UIWebView 的JS注入

案例 : 移除网页的某些不需要展示的标签

  • 准备网页地址 : http://m.dianping.com/tuan/deal/5501525

浏览器终端中演示JS代码删除网页中元素

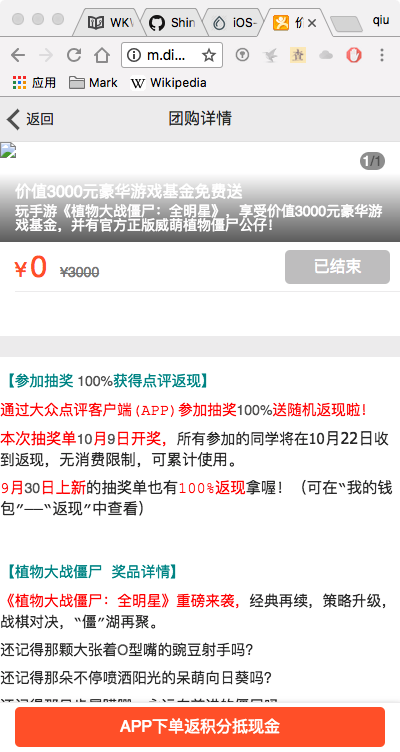

  • 需要处理的网页 —
  • 网页处理的步骤 ``` javascript 以删除导航为例 : 1.先找到该节点 : var headerTag = document.getElementsByTagName(‘header’)[0]; 2.再找到父节点 : headerTag.parentNode 3.最后用它的父节点删除该节点 : headerTag.parentNode.removeChild(headerTag);

合并: var headerTag = document.getElementsByTagName(‘header’)[0];headerTag.parentNode.removeChild(headerTag);

1
2
3

* 删除导航
``` javascript
var headerTag = document.getElementsByTagName('header')[0];headerTag.parentNode.removeChild(headerTag);
  • 删除底部悬停按钮
    1

    var footerBtnTag = document.getElementsByClassName('footer-btn-fix')[0]; footerBtnTag.parentNode.removeChild(footerBtnTag);
  • 删除底部布局
    1

    var footerTag = document.getElementsByClassName('footer')[0]; footerTag.parentNode.removeChild(footerTag);

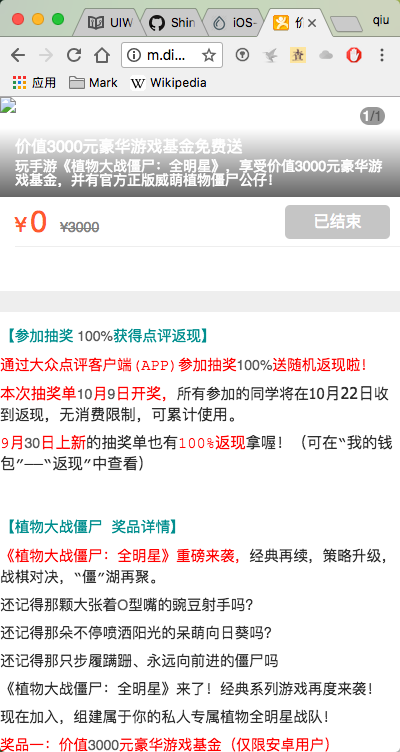

  • 处理之后的网页

OC调用JS 实现 JS注入

OC和JS的交互需要使用UIWebView的代理方法作为桥梁实现

1
2
3
4
5
6
7
8
9

- (void)viewDidLoad {
	[super viewDidLoad];

	NSURL * URL = [NSURL URLWithString:@"http://m.dianping.com/tuan/deal/5501525"];
	[self.webView loadRequest:[NSURLRequest requestWithURL:URL]];

	// 设置代理
	self.webView.delegate = self;
}
  • 网页加载完时调用的代理方法 ``` objc
  • (void)webViewDidFinishLoad:(UIWebView * ) webView; ```
  • 网页加载完成之后,调用JS代码的OC方法 ``` objc
  • (nullable NSString * )stringByEvaluatingJavaScriptFromString:(NSString * )script; ```

JS注入的具体实现

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

- (void)webViewDidFinishLoad:(UIWebView * )webView
{
	// 拼接JS的代码
	NSMutableString * JSStringM = [NSMutableString string];

	// 删除导航
	[JSStringM appendString:@"var headerTag = document.getElementsByTagName('header')[0];headerTag.parentNode.removeChild(headerTag);"];
	// 删除底部悬停按钮
	[JSStringM appendString:@"var footerBtnTag = document.getElementsByClassName('footer-btn-fix')[0]; footerBtnTag.parentNode.removeChild(footerBtnTag);"];
	// 删除底部布局
	[JSStringM appendString:@"var footerTag = document.getElementsByClassName('footer')[0]; footerTag.parentNode.removeChild(footerTag);"];

	// OC调用JS代码
	[webView stringByEvaluatingJavaScriptFromString:JSStringM];
}

UIWebView监听网页标签的点击(JS调用OC)

案例 : 点击网页某个标签跳转到苹果原生控制器 核心思想 : 拦截webView上所有的网络请求

JS调用OC需要实现的代理方法

1

-(BOOL) webView:(UIWebView * )webView shouldStartLoadWithRequest:(NSURLRequest * )request navigationType:(UIWebViewNavigationType)navigationType;

JS注入给标签添加点击事件

  • 网页标签添加点击事件
    1

    [JSStringM appendString:@"var figureTag = document.getElementsByTagName('figure')[0].children[0]; figureTag.onclick = function(){window.location.href = 'custom://techbird.me'};"];
  • 标签的点击事件注入到JS ``` objc

  • (void)webViewDidFinishLoad:(UIWebView * )webView { // 拼接JS的代码 NSMutableString * JSStringM = [NSMutableString string];

    // 删除导航 [JSStringM appendString:@”var headerTag = document.getElementsByTagName(‘header’)[0];headerTag.parentNode.removeChild(headerTag);”]; // 删除底部悬停按钮 [JSStringM appendString:@”var footerBtnTag = document.getElementsByClassName(‘footer-btn-fix’)[0]; footerBtnTag.parentNode.removeChild(footerBtnTag);”]; // 删除底部布局 [JSStringM appendString:@”var footerTag = document.getElementsByClassName(‘footer’)[0]; footerTag.parentNode.removeChild(footerTag);”];

    // 给标签添加点击事件 [JSStringM appendString:@”var figureTag = document.getElementsByTagName(‘figure’)[0].children[0]; figureTag.onclick = function(){window.location.href = ‘custom://techbird.me’};”];

    1

    // OC调用JS代码   [webView stringByEvaluatingJavaScriptFromString:JSStringM]; } ```
  • 给标签添加点击事件的目的 : 使标签可点击
  • 点击事件发送网络请求的目的 : 可以拦截到标签的点击事件
  • 自定义协议的目的 : 给事件设计一个特殊的标记,如果拦截到请求,就通过特殊的标记来区别要做的事情

拦截webView上所有的网络请求,筛选请求

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

/**
 1.JS与OC交互的桥梁
 2.可以拦截webView上所有的请求
 3.给标签添加点击事件,点击事件主要就是发送请求;发送的请求是自定义协议的,目的是为了做标记.
 */
- (BOOL)webView:(UIWebView * )webView shouldStartLoadWithRequest:(NSURLRequest * )request navigationType:(UIWebViewNavigationType)navigationType
{
	NSLog(@"%@",request.URL.absoluteString);

	// 拿到网页的请求地址
	NSString * URLString = request.URL.absoluteString;
	// 判断网页的请求地址协议是否是我们自定义的那个
	NSRange range = [URLString rangeOfString:@"custom://techbird.me"];
	if (range.length > 0) {
		// 点击网页中的图片,实现OC原生界面的跳转
		TestViewController * VC = [[TestViewController alloc] init];
		[self.navigationController pushViewController:VC animated:YES];
		return NO;
	}
	return YES;
}

JSContext

JSContext是JavaScript的运行上下文，他主要作用是执行js代码和注册native方法接口

JSContexts实现OC与JS交互

  • 获取上下文
    1

    JSContext *context = [self.webView valueForKeyPath:@"documentView.webView.mainFrame.javaScriptContext"];

    使用JSContext 实现 JS调用OC

    ``` objc

  • (void)viewDidLoad { [super viewDidLoad];

    NSURLRequest * request = [NSURLRequest requestWithURL:[NSURL URLWithString:@”http://m.dianping.com/tuan/deal/5501525”]]; [self.webView loadRequest:request]; self.webView.delegate = self;

    // 获取上下文 JSContext * context = [self.webView valueForKeyPath:@”documentView.webView.mainFrame.javaScriptContext”]; // 监听图片标签点击 context[@”imgtag”] = ^ { [self.navigationController pushViewController:[TestViewController new] animated:YES]; }; // 监听购买标签点击 context[@”buytag”] = ^ { [self.navigationController pushViewController:[Test1ViewController new] animated:YES]; }; } ```

    使用JSContext 实现 JS注入

    ``` objc

  • (void)webViewDidFinishLoad:(UIWebView * )webView { // 拿到JS的上下文 JSContext * context = [self.webView valueForKeyPath:@”documentView.webView.mainFrame.javaScriptContext”];

    // 直接调用JS的函数,还可以向函数里面传入需要的参数.在XCode中向JS中的alert传入需要的message // 拼接JS的代码 NSMutableString * JSStringM = [NSMutableString string];

    // 删除导航 [JSStringM appendString:@”var headerTag = document.getElementsByTagName(‘header’)[0];headerTag.parentNode.removeChild(headerTag);”]; // 删除底部悬停按钮 [JSStringM appendString:@”var footerBtnTag = document.getElementsByClassName(‘footer-btn-fix’)[0]; footerBtnTag.parentNode.removeChild(footerBtnTag);”]; // 删除底部布局 [JSStringM appendString:@”var footerTag = document.getElementsByClassName(‘footer’)[0]; footerTag.parentNode.removeChild(footerTag);”];

    // 给图片标签添加点击事件 : 自定义协议 [JSStringM appendString:@”var figureTag = document.getElementsByTagName(‘figure’)[0].children[0]; figureTag.onclick = function imgtagclick() {imgtag();};”];

    // 给以过期的购买标签重新添加点击事件 [JSStringM appendString:@”var buyBtnTag = document.getElementsByClassName(‘buy-btn btn-gray’)[0]; buyBtnTag.onclick = function buybtnclick() {buytag();};”];

    // 执行这个JS代码 [context evaluateScript:JSStringM]; } ```

WKWebView

Starting in iOS 8.0 and OS X 10.10, use WKWebView to add web content to your app. Do not use UIWebView or WebView.

WKWebView的OC和JS交互

  • 使用前导入头文件
    1

     #import <WebKit/WebKit.h>
  • 遵守代理协议
    1

    webView.navigationDelegate = self;

代理方法介绍

  • 面即将开始加载时调用 (拦截网页的网络请求 : JS调用OC) ``` objc
  • (void)webView:(WKWebView * )webView decidePolicyForNavigationAction:(WKNavigationAction * )navigationAction decisionHandler:(void (^)(WKNavigationActionPolicy))decisionHandler; ```
  • 页面开始加载时调用 ``` objc
  • (void)webView:(WKWebView * )webView didStartProvisionalNavigation:(WKNavigation * )navigation; ```
  • 收到响应后,决定是否跳转,即是否把这个链接对应的网页加载到WKWebView上 ``` objc
  • (void)webView:(WKWebView * )webView decidePolicyForNavigationResponse:(WKNavigationResponse * )navigationResponse decisionHandler:(void (^)(WKNavigationResponsePolicy))decisionHandler; ```
  • 当内容开始返回时调用,即服务器已经在向客户端发送网页数据 ``` objc
  • (void)webView:(WKWebView * )webView didCommitNavigation:(WKNavigation * )navigation; ```
  • 页面加载完成之后调用 (OC调用JS : JS注入) ``` objc
  • (void)webView:(WKWebView * )webView didFinishNavigation:(WKNavigation * )navigation; ```
  • 页面加载失败时调用 ``` objc
  • (void)webView:(WKWebView * )webView didFailProvisionalNavigation:(WKNavigation * )navigation; ```

    准备WKWebView

    ``` objc

  • (void)viewDidLoad { [super viewDidLoad];

    // 创建WKWebView WKWebView * webView = [[WKWebView alloc] initWithFrame:[UIScreen mainScreen].bounds]; [self.view addSubview:webView]; webView.backgroundColor = [UIColor redColor]; self.webView = webView;

    // 设置代理 self.webView.navigationDelegate = self;

    // 加载的网页 NSURL * URL = [NSURL URLWithString:@”http://m.dianping.com/tuan/deal/5501525”]; NSURLRequest * request = [NSURLRequest requestWithURL:URL]; [self.webView loadRequest:request]; } ```

    OC调用JS : JS注入 (类似UIWebView)

    ``` objc // 页面加载完成之后调用

  • (void)webView:(WKWebView * )webView didFinishNavigation:(WKNavigation * )navigation { // 拼接JS的代码 NSMutableString * JSStringM = [NSMutableString string];

    // 删除导航 [JSStringM appendString:@”var headerTag = document.getElementsByTagName(‘header’)[0];headerTag.parentNode.removeChild(headerTag);”]; // 删除底部悬停按钮 [JSStringM appendString:@”var footerBtnTag = document.getElementsByClassName(‘footer-btn-fix’)[0]; footerBtnTag.parentNode.removeChild(footerBtnTag);”]; // 删除底部布局 [JSStringM appendString:@”var footerTag = document.getElementsByClassName(‘footer’)[0]; footerTag.parentNode.removeChild(footerTag);”];

    // 给标签添加点击事件 : 自定义协议 [JSStringM appendString:@”var figureTag = document.getElementsByTagName(‘figure’)[0].children[0]; figureTag.onclick = function(){window.location.href = ‘custom://techbird.me’};”];

    // OC调用JS代码 [webView evaluateJavaScript:JSStringM completionHandler:nil]; } ```

    JS调用OC : (类似UIWebView)

    ``` objc // 在发送请求之前，决定是否跳转

  • (void)webView:(WKWebView * )webView decidePolicyForNavigationAction:(WKNavigationAction * )navigationAction decisionHandler:(void (^)(WKNavigationActionPolicy))decisionHandler { NSLog(@”在发送请求之前，决定是否跳转 decidePolicyForNavigationAction”);

    NSString * URLString = navigationAction.request.URL.absoluteString; NSLog(@”监测到的WKWebView上的请求 %@”,URLString);

    NSRange range = [URLString rangeOfString:@”custom://”]; if (range.length > 0) {

    1
2
3
4
5
6

      [self.navigationController pushViewController:[[TestViewController alloc] init] animated:YES];

  // 不允许跳转,即不加载这个链接对应的内容
  decisionHandler(WKNavigationActionPolicyCancel);   } else {
  // 允许跳转,即加载这个链接对应的内容
  decisionHandler(WKNavigationActionPolicyAllow);   } } ```

WKWebView 监听加载进度

初始化WKWebView和进度条

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

- (void)viewDidLoad {
	[super viewDidLoad];

	// 创建进度条
	self.progress = [[UIProgressView alloc] init];
	self.progress.frame = CGRectMake(0, 64, [UIScreen mainScreen].bounds.size.width, 10);
	[self.view addSubview:self.progress];
	self.progress.progress = 0;

	// 创建WKWebView
	WKWebView * webView = [[WKWebView alloc] initWithFrame:[UIScreen mainScreen].bounds];
	[self.view addSubview:webView];
	webView.backgroundColor = [UIColor redColor];
	self.webView = webView;

	// 设置代理
	self.webView.navigationDelegate = self;

	// 加载的网页
	NSURL * URL = [NSURL URLWithString:@"http://m.dianping.com/tuan/deal/5501525"];
	NSURLRequest * request = [NSURLRequest requestWithURL:URL];
	[self.webView loadRequest:request];

	// KVO添加进度监听
	[webView addObserver:self forKeyPath:@"estimatedProgress" options:NSKeyValueObservingOptionNew context:nil];
}

KVO监听进度

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

- (void)observeValueForKeyPath:(NSString * )keyPath ofObject:(id)object change:(NSDictionary * )change context:(void * )context {

	if (object == self.webView && [keyPath isEqualToString:@"estimatedProgress"]) {

		CGFloat newprogress = [[change objectForKey:NSKeyValueChangeNewKey] doubleValue];

		NSLog(@"进度 %f",newprogress);

		if (newprogress != 1.000000) {

			// 网页加载时就展示进度
			self.progress.hidden = NO;
			self.progress.progress = newprogress;

		} else {
			// 网页加载完成就进度
			self.progress.hidden = YES;
		}
	}
}

WKWebView 其他

WKUIDelegate

  • 创建一个新的WebView
    1

    -(WKWebView * )webView:(WKWebView * )webView createWebViewWithConfiguration:(WKWebViewConfiguration * )configuration forNavigationAction:(WKNavigationAction * )navigationAction windowFeatures:(WKWindowFeatures * )windowFeatures;
  • 弹出警告的提示框时调用  ``` objc /**
  • 弹出警告的提示框时调用 *
  • @param webView 实现该代理的webview
  • @param message 警告框中的内容
  • @param frame 主窗口
  • @param completionHandler 警告框消失调用 */ -(void)webView:(WKWebView * )webView runJavaScriptAlertPanelWithMessage:(NSString * )message initiatedByFrame:(void (^)())completionHandler; ```
  • 弹出确认的提示框时调用 ``` objc /**
  • 弹出确认的提示框时调用 *
  • @param webView 实现该代理的webview
  • @param message 确认框中的内容
  • @param frame 主窗口
  • @param completionHandler 警告框消失调用 */ -(void)webView:(WKWebView * )webView runJavaScriptConfirmPanelWithMessage:(NSString * )message initiatedByFrame:(WKFrameInfo * )frame completionHandler:(void (^)(BOOL result))completionHandler; ```
  • 弹出输入提示框时调用 ``` objc /**
  • 弹出输入提示框时调用 *
  • @param webView 实现该代理的webview
  • @param message 确认框中的内容
  • @param defaultText 默认的输入框文本信息
  • @param frame 主窗口
  • @param completionHandler 警告框消失调用 */ -(void)webView:(WKWebView * )webView runJavaScriptTextInputPanelWithPrompt:(NSString * )prompt defaultText:(nullable NSString * )defaultText initiatedByFrame:(WKFrameInfo * )frame completionHandler:(void (^)(NSString * __nullable result))completionHandler; ```

Bug Tips

https://github.com/ShingoFukuyama/WKWebViewTips
